| MODEL | C60-AB | | C60-AC | | C60-BB | | C60-CC | |
| INPUT | VOLTAGE | AC 90 ~ 130V, 180 ~ 260V |
| FREQUENCY | 47 ~ 440 |
| INRUSH CURRENT | 20A(110V AC INPUT), 40A(220V AC INPUT) |
| OUTPUT | VOLTAGE (V) | 5 | 12 | 5 | 15 | 12 | -12 | 15 | -15 |
| CURRENT (A) | 3.0 | 1.25 | 1.0 | 0.63 | 0.42 | 0.31 | 3 | 1 |
| LINE REGULATION (%) | 0.8 MAX (90 ~ 260V) |
| LOAD REGULATION (%) | 5V (5%), 12V (10%) CROSS REGULATION |
| VOUT ADSUSTABLE RANGE (%) | VOUT x 10 (Typ) |
| TEMP. COEFFICIENT (%) 1 | 0.03 (0 ~ +50) |
| HOLD-UP TIME | 20 (MIN) |
| RIPPLE / NOISE (mV P-P) | VOUT x 1% (MAX) |
OUTPUT
PROTECTIONS | OVER CURRENT PROTECTION | 130~180% OF RATED IOUT(AUTOMATIC RECOVERY) |
| OVER VOLTAGE PROTECTION | 120~140% OF RATED VOUT(SHUT DOWN LATCH) |
| EFFICIENCY | 75% (TYP) |
| OPERATING TEMPERATURE () | -10 ~ +50 (AT FULL RATED LOAD) |
| STORAGE TEMPERATURE () | -20 ~ +75 (MIN) |
| OPERATING HUMIDITY (%) | 10 ~ 90RH (NON CONDENSING) |
| TURN ON RESPONS (mS) | 100 (MAX) |
WITHSTAND VOLTAGE (INPUT  CHASSIS, INPUT OUTPUT) : 1.5KVAC 1MINUTE |
| ISOLATION RESISTANCE (OUTPUT CHASSIS) : 100M BY 500V DC MEGGER |

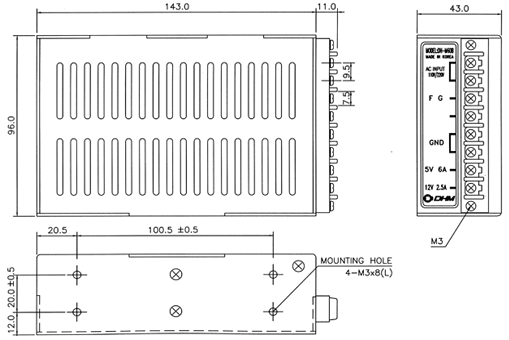

DH-C60-AB
CHASSIS, INPUT
